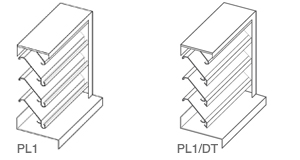

Single Bank Ventilation Louvres - PL1 and PL1/DT

Mega Union’s single bank ventilation louvre system is mainly used as a material for the outer wall panels of highly ventilated buildings for the purpose of satisfying decorative and shading requirements. The external appearance and installation flexibility of the single bank louvre makes it highly effective for decoration and shading purposes.

Product Specifications

The blade spacing of Mega Union’s single bank ventilation louvre is 60mm. Its overall structure is made of high quality anti-corrosion aluminium 6063T5. The blades of the single bank ventilation louvre should not be installed by drilling or fastening with screws but wedged into the structural supporting mullion so as to allow expansion or contraction along the horizontal direction without being deformed or distorted. In addition, this will ensure a uniform appearance of the louvres.

The maximum distance from the centre of the mullion should not exceed 1250 mm. Support points along the vertical direction served to satisfy the actual air flow pressure requirement should be computed & specified by a structural engineer.
